Lexus IS350/GS350/ISF/GSF/RCF front BRAKES
Installation for Lexus IS350 Front brake caliper on various Lexus and Toyota applications
requirements
parts

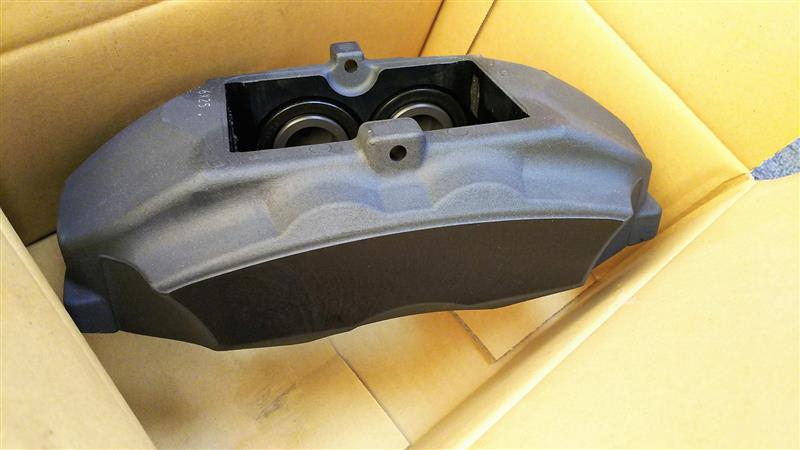

- Front 2006+ Lexus IS350 calipers
- Front 2006+ Lexus IS350 (336mm x 30mm) rotors

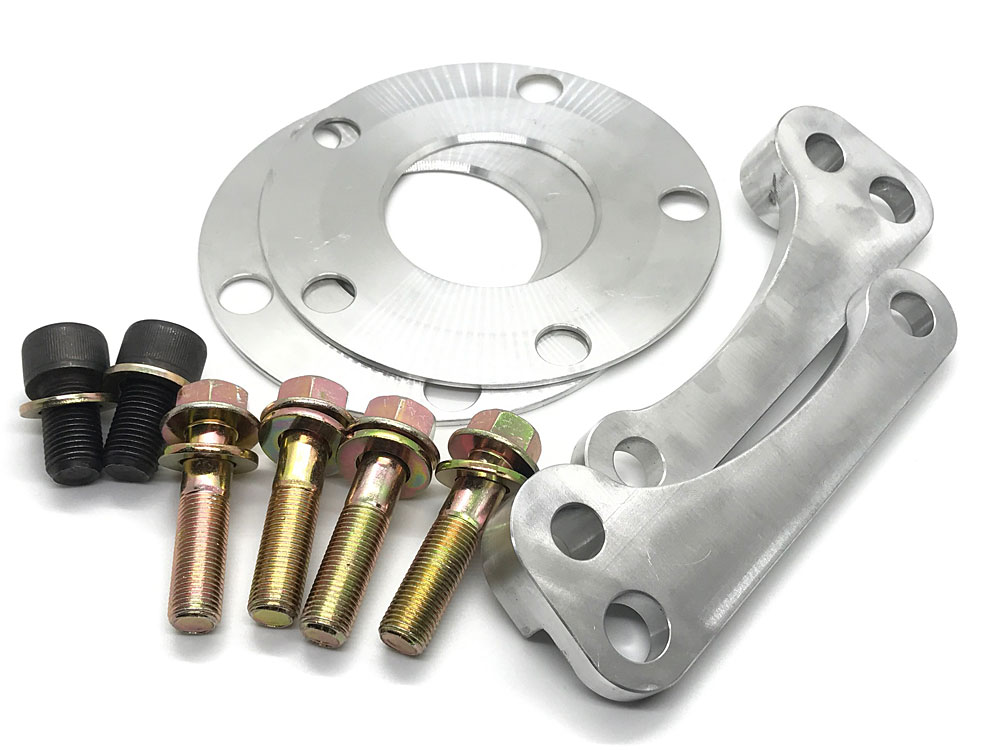

- 350phi Front bracket mounting kit
Alternate rotor options
- OEM toyota would be best
- Centric/Stoptech Sport rotors are great
Notes
- Will require removal to front dust shield
- Will require wheels 18" and up that can clear big brakes for IS350/GS350/ISF calipers
- Will require wheels 19" and up that can clear big brakes for GSF/RCF calipers
- Might clear 17" wheels with spacers. Use template to check.
- 2nd & 3rd gen IS350, 3rd gen GS350, 4th gen GS350 and 1st gen RC350 Non F-sport have the same Advics 4 pot calipers and rotors
Other optional Front calipers Upgrade
| Year(s) | Model(s) / Calipers | Rotors |
|---|---|---|

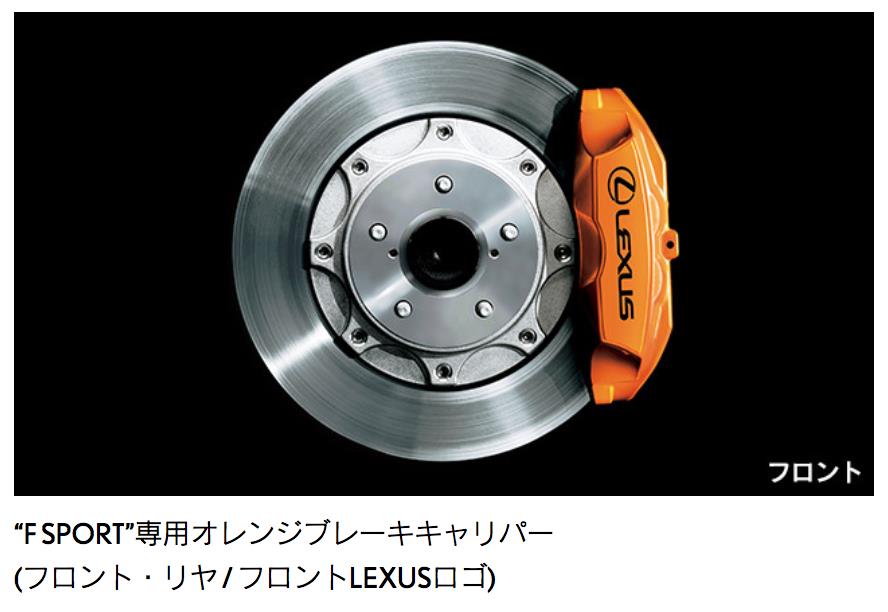

| 2013 + | Lexus GS350 or RC350 F-Sport 4 Pot Front calipers | 2013+ Lexus GS350 F-Sport 356mm rotors OEM 2pc discontinued rotors: 43512-30371 or 43512-30370: Disc, Right 2pc rotor 43516-30061 or 43516-30060: Disc, Left 2pc rotor OEM 1pc steel rotors: 43512-WY010: Disc Right 43516-WY020: Disc Left Aftermarket rotors: 12144205: Centric C-Tek Right 12144204: Centric C-Tek Left 128.44187R: Stoptech drilled Right 128.44189L: Stoptech drilled Left *Note: Any aftermarket 2013+ GS350 F-Sport rotors will work. Has to be 356mm dimeter. |

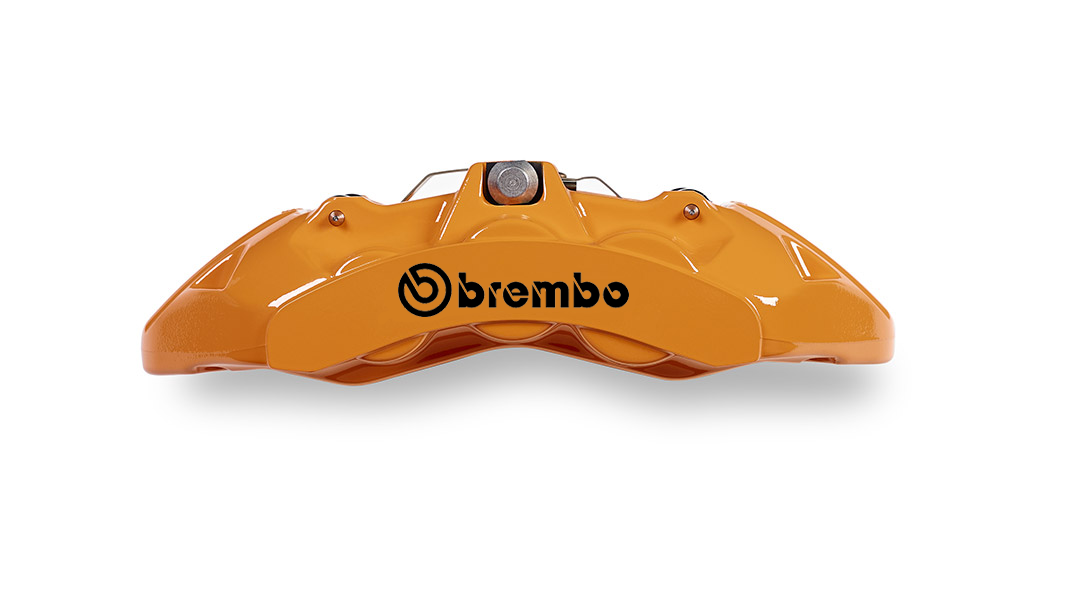

| 2008 + | Lexus ISF 6 Pot Brembo Front Calipers | 2013+ Lexus GS350 F-Sport 356mm rotors *See above for part number |

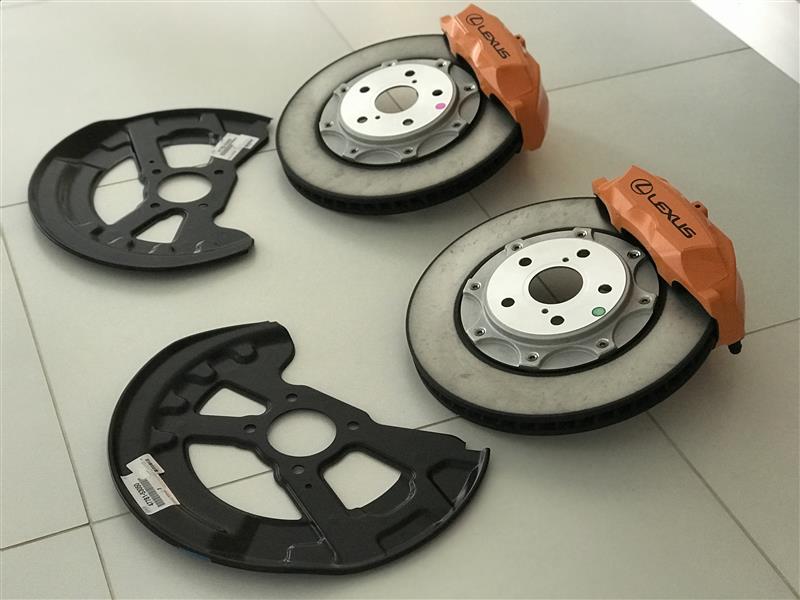

| 2015 + | Lexus RCF or GSF 6 Pot Brembo Front Calipers | RCF/GSF 380mm rotors *OEM or aftermarket will work |
applicability
| Year(s) | Model(s) | Additional Information |
|---|---|---|
| 2001 - 2005 | IS200, IS300, Altezza (GXE10, JCE10, SXE10) | Bracket IS3501.0 required for front |
| 1996 - 2001 | Toyota Chaser, Cresta (GX100, JZX100) | Bracket IS3501.0 required for front |
| 2000 - 2004 | Toyota MARK 2 (GX110, JZX110) | Bracket IS3501.0 required for front |
| 1991 - 1997 | Lexus GS300 (S140), Toyota Aristo | Bracket IS3502.0 required for front |
| 1998 - 2005 | Lexus GS300/400/430 (S160), Toyota Aristo | Bracket IS3502.0 required for front |
| 2001 - 2010 | Lexus SC430 (Z40), Toyota Soarer (UZZ40) | Bracket IS3502.0 required for front |
| 1991 - 2000 | Lexus SC300/400 (Z30), Toyota Soarer (JZZ30/31, UZZ30/31/32) | Bracket IS3502.0 required for front |
| 1993 - 1998 | Toyota Supra MKIV | Bracket IS3502.0 required for front |
| 1995 - 2000 | Lexus LS400 | Bracket IS3502.0 required for front |
IS350
Information
Some Lexus model year have the ability to bolt-on IS350/GS350 4 POT Advics or ISF/GSF/RCF 6 POT Brembo front calipers onto the car. These calipers with the right rotors will be a direct bolt-on using a custom bracket. There are two different version of the Lexus Brembo Calipers. 08-14 Lexus ISF or the 15-17 GSF/RCF.

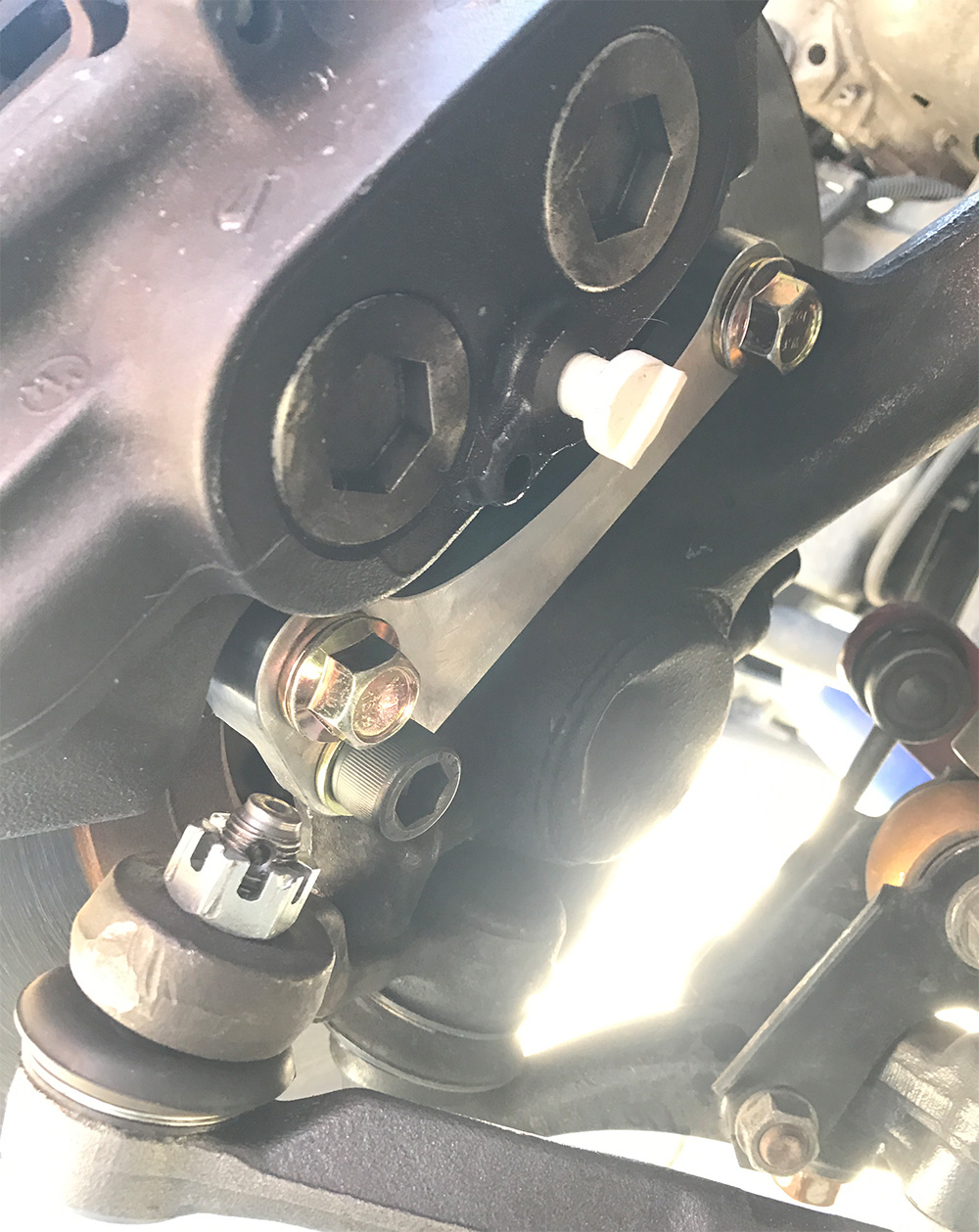

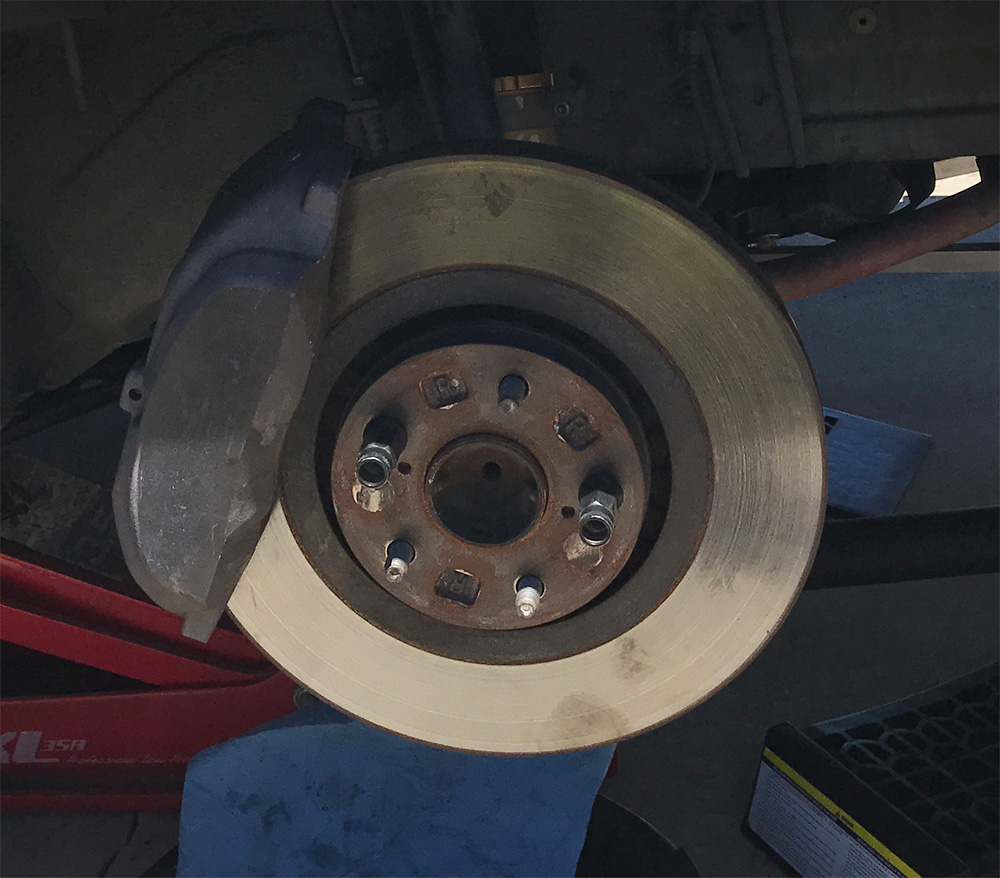

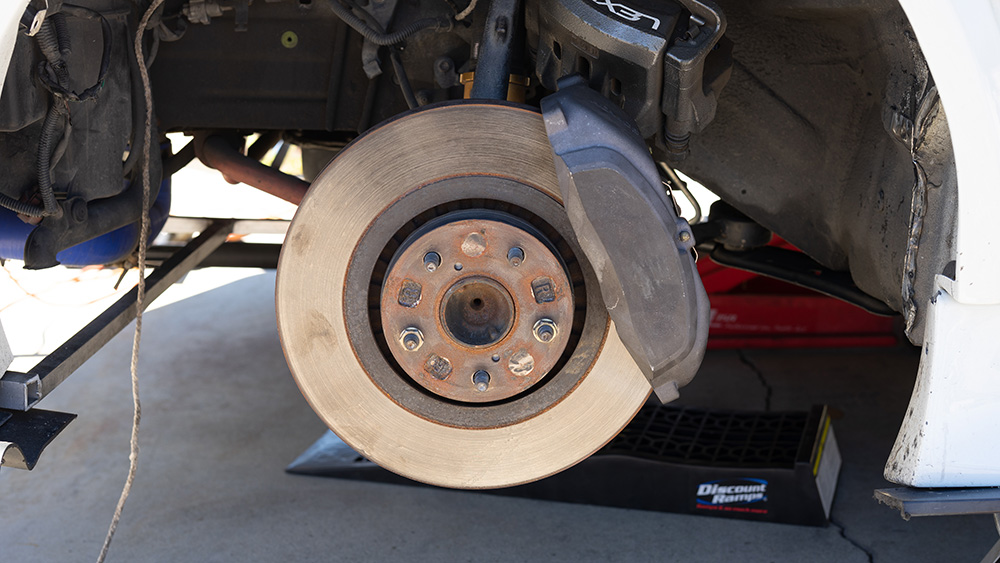

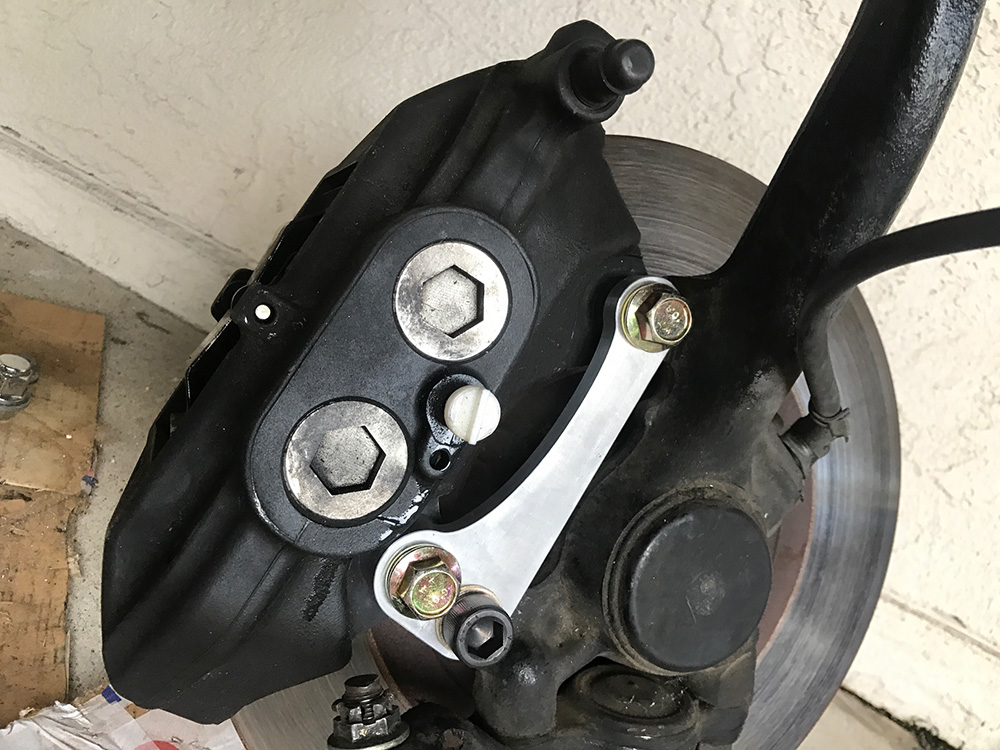

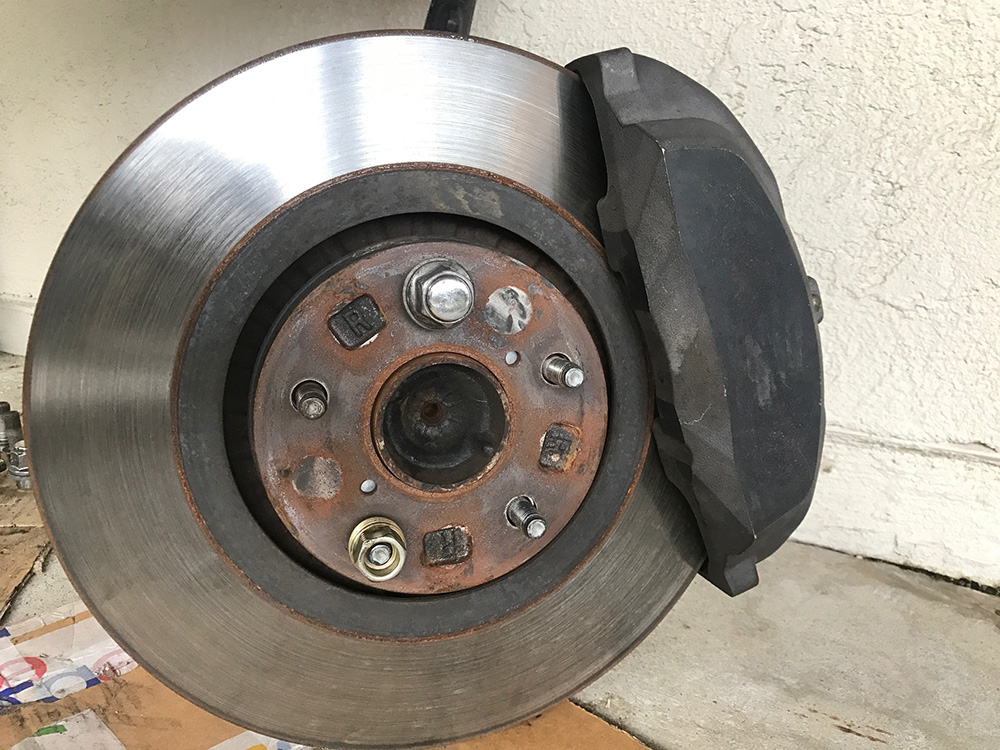

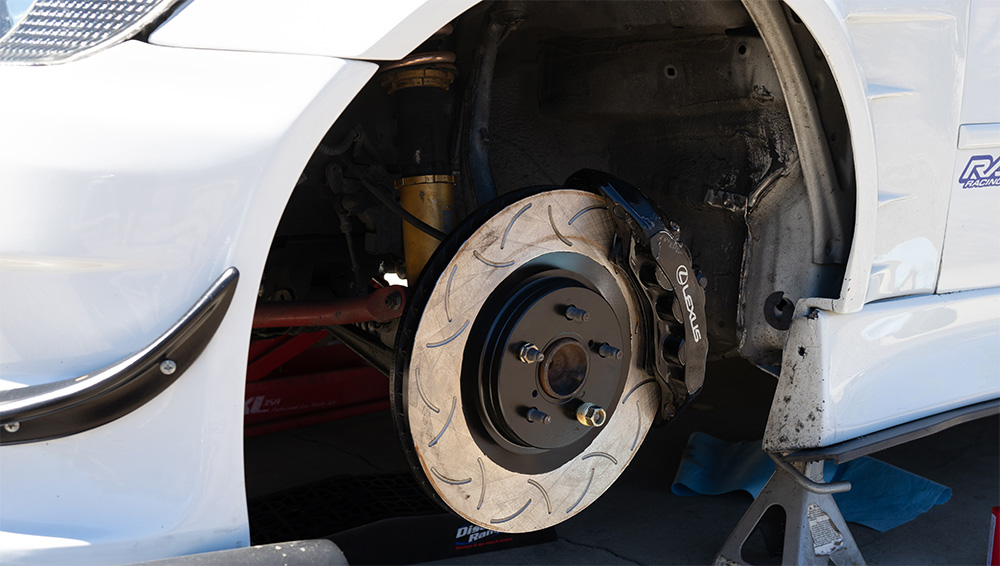

IS350 4 POT front caliper will bolt-on the front knuckle of the listed models with custom bracket. The ISF front brembo calipers are a direct bolt-on with custom bracket if you're using 2013 and up GS350 F Sport front brake rotors. GSF/RCF front brembo calipers are a direct bolt-on with custom bracket when using GSF/RCF front rotors.
There are no special brake lines needed as your car's factory brake lines bolt up. You can purchase Lexus ISF Stoptech SS brake lines and it will bolt up.

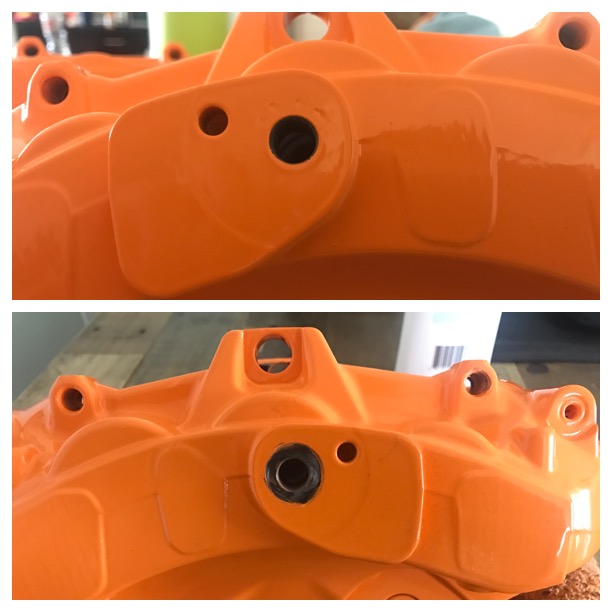

If you're powdercoating your calipers, please make sure that you clean and remove any layer of paint around the brake line valve. This will ensure that the crush washer to the brake lines sit flush with the caliper and does not cause any leaks.
Front mounting kits has full instructions on installation. Please download and print out the IS350 BBK template and make sure your current wheels could clear the caliper upgrade.
