Lexus RX350 F SPORT BRAKES
Installation for Lexus RX350 F Sport brake caliper on various Lexus and Toyota Applications
requirements
parts
- Front OEM 2023 RX350 F Sport calipers and bolts
- Front OEM 2023 RX350 F Sport rotors (400mm x 36mm)
- Front OEM 2023 RX350 F Sport brake lines
- Front OEM 2023 RX350 F Sport brake pads and fitting kit
Alternate rotor options
- OEM toyota is best or any aftermarket rotor
Notes
- Will require modifications to front dust shield
- Will require modifications to front knuckle
- Will require wheels 20" and up that can clear BBK

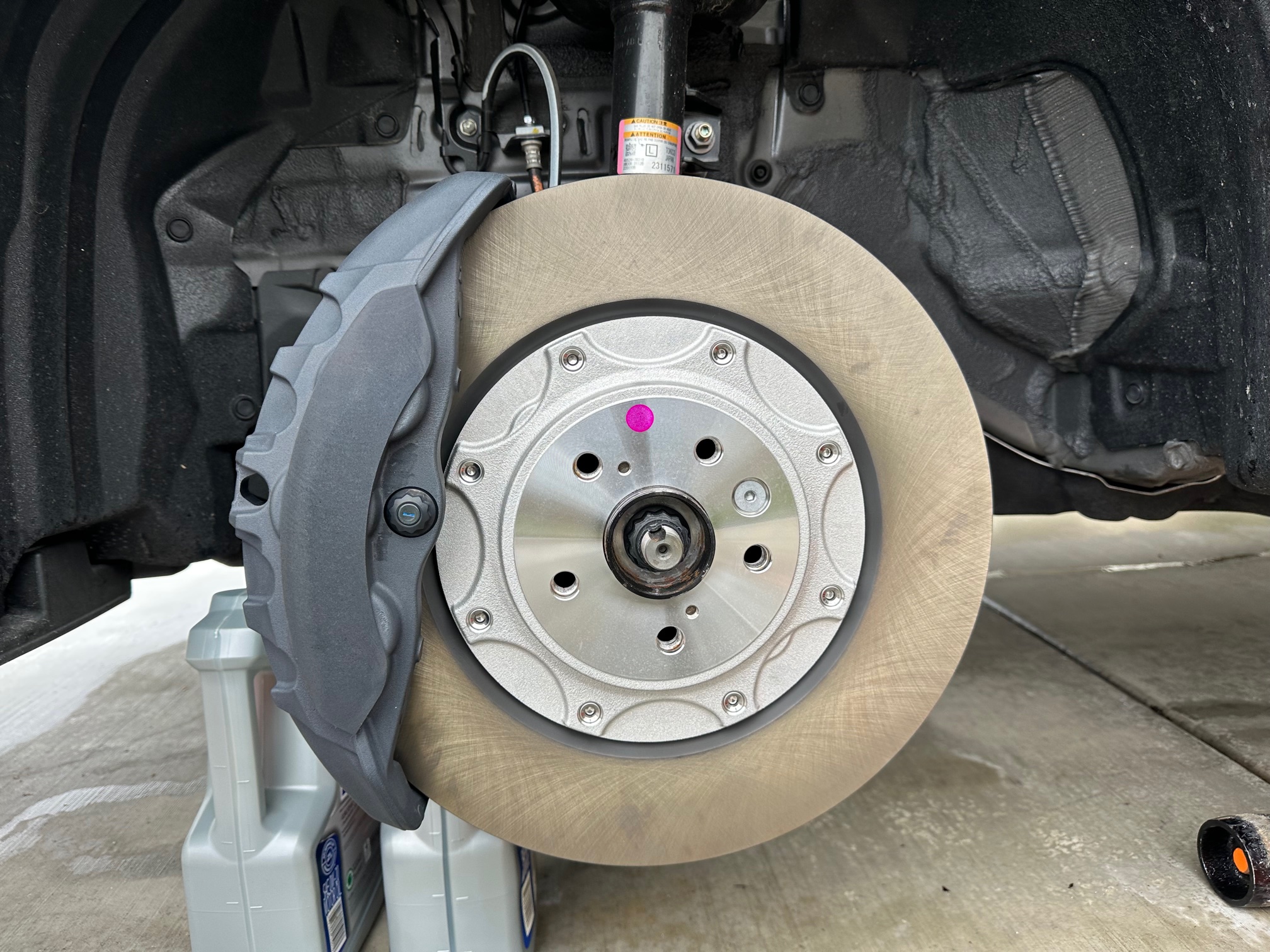

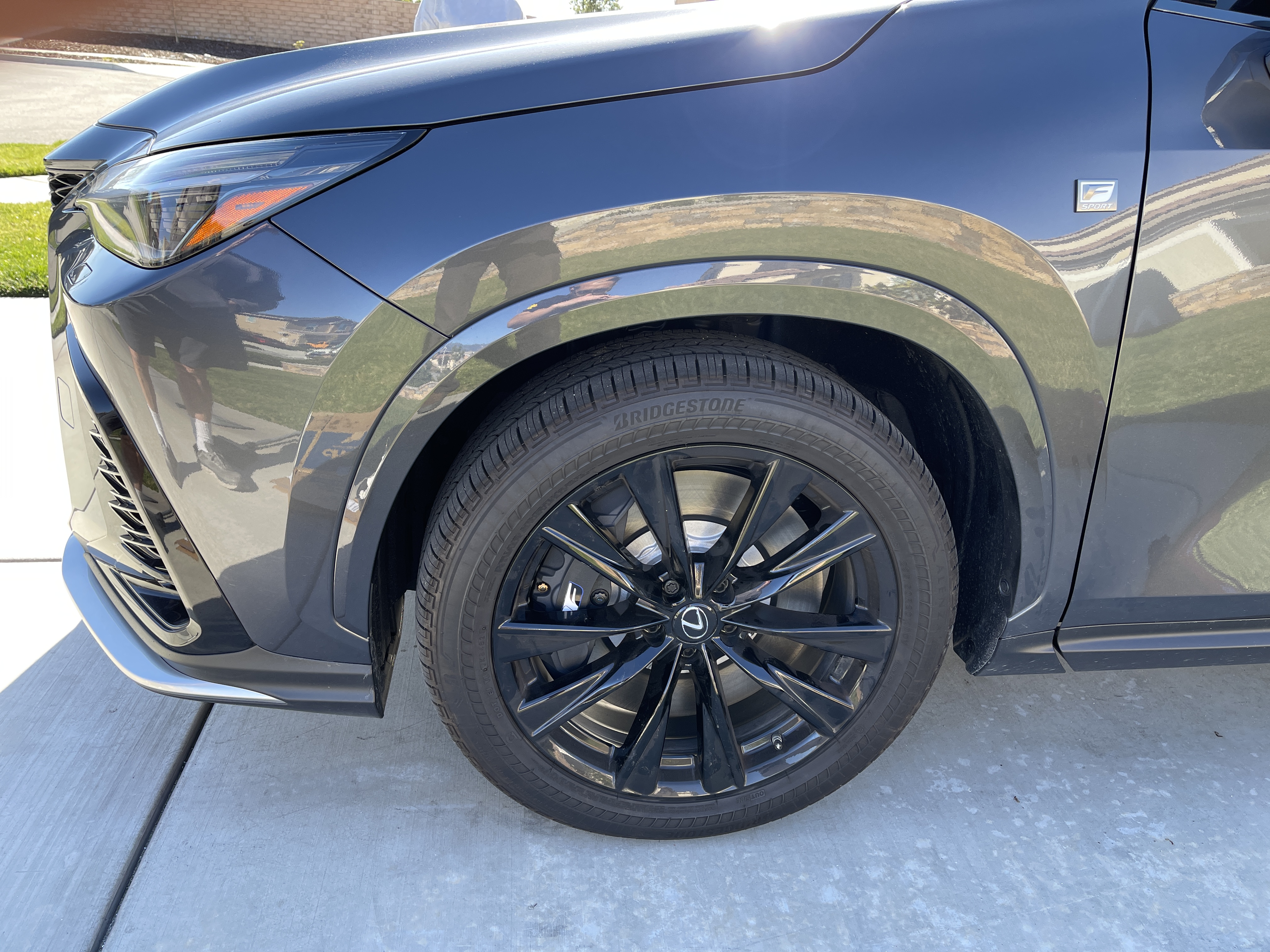

- *OEM NX350 20" will work as seen in the picture below
OEM Lexus Part Numbers
- Front Left Caliper: 47750-48230 - Right Caliper: 47730-48260
- Front Left Rotor: 43516-48010 - Right Rotor: 43512-48190
- Front brake pad set*: 04465-48270 - Fitting kit set*: 04947-48100
*a set comes in both left and right side. Order 1 QTY - Front Left brake lines: 90947-A2149 - Right brake lines: 90947-A2150
- Front Caliper Bolts: 90105-A0435 (QTY 4)
- optional dust shield: left: 47781-48060 - right: 47782-48060
- Lexus RX500H black caliper:
Front Left Caliper: 47750-48240 - Right Caliper: 47730-48270
applicability
| Year(s) | Model(s) | Additional Information |
|---|---|---|
| 2010 - current | RX350*/450H*/450HL* | Direct bolt-on for front. No solution for rear. |
| 2015 - current | NX250*/250T*/300*/300H*/350 */350H* | Direct bolt-on for front. No solution for rear. |
| 2011 - 2020 | Toyota Sienna | Direct bolt-on for front. No solution for rear. |
| 2010 - 2019 | Toyota Highlander | Direct bolt-on for front. No solution for rear. | * RWD or AWD |
RX350 F Sport
Information
Some Lexus model year RX and NX have the ability to bolt-on 6 POT front Advics calipers onto the car. Toyota Sienna, Highlander and Venza also have this ability. These front calipers and rotors will be a direct bolt-on without any use of shims, bracket or spacers.

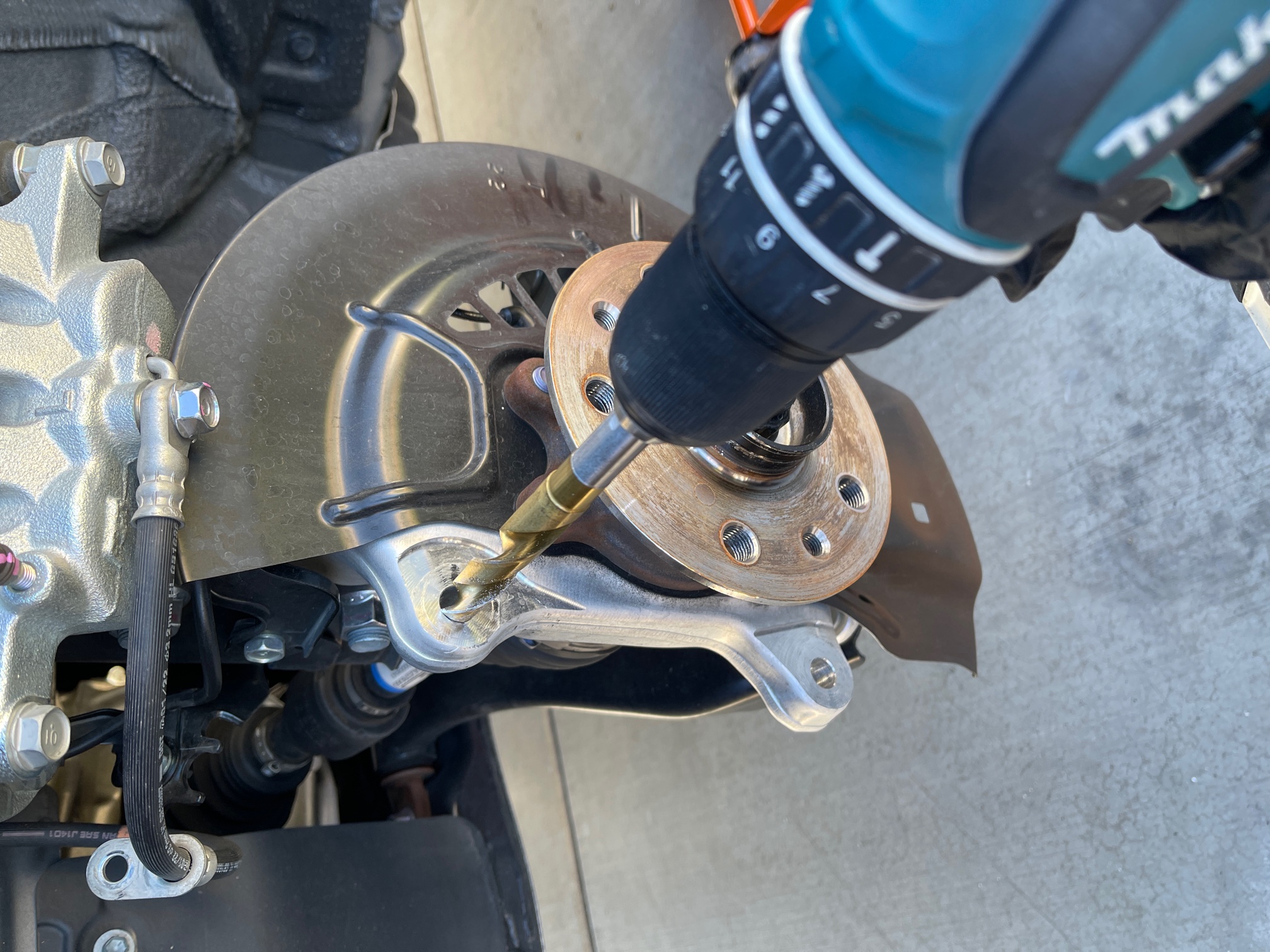

The only modifications needed is enlarging the two front calper mounting holes on your knuckle to M14 bolt size hole using a 9/16 drill bit. When drilling the hole, please be straight as possible. Take your time and slowly press into the knuckle as it can catch and throw your wrist. Clean all metal shaving and make sure there are no shavings on any thread bolts of the spindle of your car. You do not want bolts to be stuck on the car because of metal shavings. Some cars will require trimming or bending of the dust shield. During the installation on our 2022 Lexus NX350 shop car, we discovered that the front dust shield needed no trimming. When installing, please check the clearance of the dust shield and trim accordingly as needed.

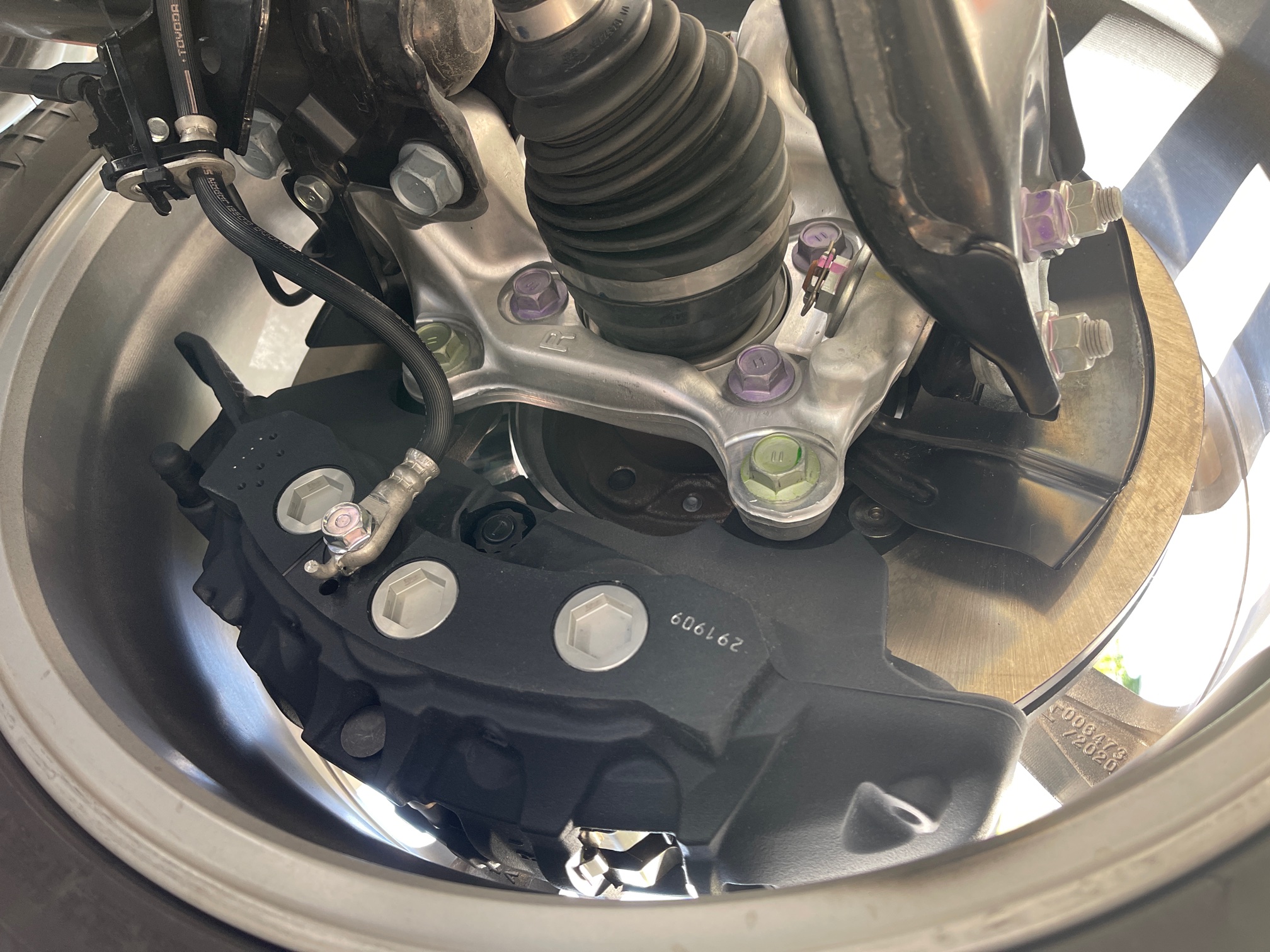

Also, you must use the 2023 Lexus RX 350 F Sport brake lines because your stock brake lines will be too short and not compatible. Picture to the left shows stock NX brake lines flipped around and mounted using extra banjo crush washer. Zip ties were used to hold the brake lines. This is not recommend as this was on our test car. You must use the factory oem M14x1.25x35 caliper bolts from the 2023 RX350 F Sport caliper.
If you're powdercoating your calipers, please make sure that you clean and remove any layer of paint around the brake line valve. This will ensure that the crush washer to the brake lines sit flush with the caliper and does not cause any leaks.
After enlarging the mounting holes and trimming the dust shield (if needed), you should be able to mount the caliper to your car directly with no special adapters or brackets needed. Torque the 19mm caliper bolt to 100lb-ft. The rotor will line right up to the caliper like factory.
