Lexus Big brake upgrade

Available for 2001+ IS - 2006+ GS - 2015+ RC

introduction

The cheapest way to give your car larger brakes is by installing brakes from another car. For Lexus, the best option is to use brakes from their performance models, the ISF. Lexus ISF comes with large front 6 piston brembo calipers with 356mm x 30mm thick rotors and two piston brembo calipers with 345mm x 28mm thick rotors in the rear.

Another option but more expansive way to achieve larger brakes would be to use brakes from Lexus newer performance models, the GSF and RCF. Both the Lexus GSF and RCF comes with the same braking system. In comparision to the ISF, GSF and RCF comes with larger 6 piston brembo calipers with 380mm x 34mm thick rotors and four piston brembo calipers with 345mm x 28mm thick rotors in the rear.

For older Lexus models, a great option for larger brakes is to use IS350 brake calipers. This setup would give you aluminum 4 piston caliper with 334mm x 30mm thick rotors. A big upgrade compared to many stock 11.6 inch rotors.

brake caliper bracket adaptor

2nd and 3rd gen IS, 3rd gen and 4th gen GS, and RC front brakes are a simple bolt-on, the rear requires a custom bracket adaptor to mount the brake calipers.

1st gen IS requires a custom bracket adaptor to mount the front brake caliper.

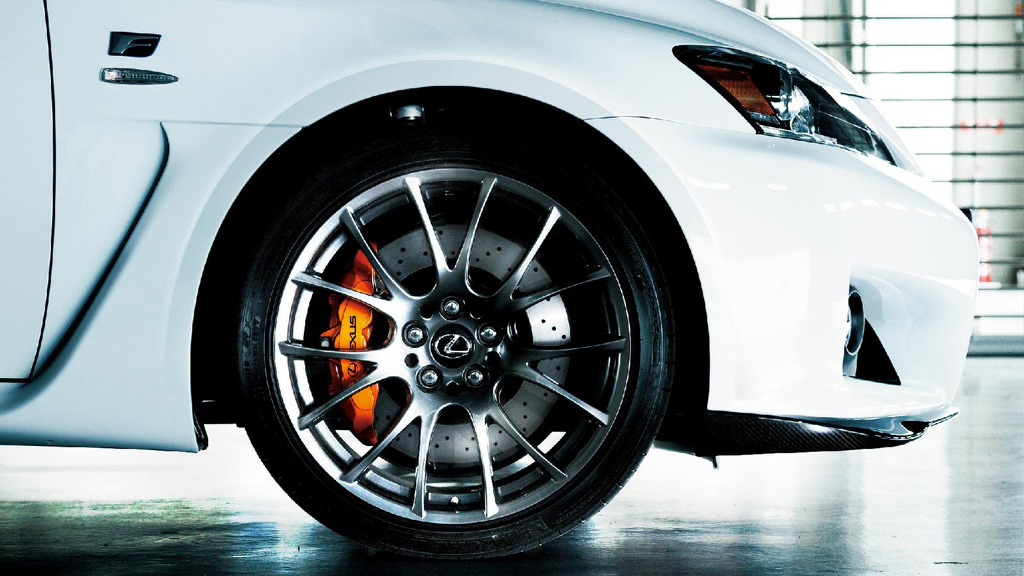

ISF Brembo brakes

ISF Front caliper brakes bolt-on using 2013+ Lexus GS350 F-Sport rotors. Rear caliper with ISF rotors bolt on using a bracket adaptor.

Learn more

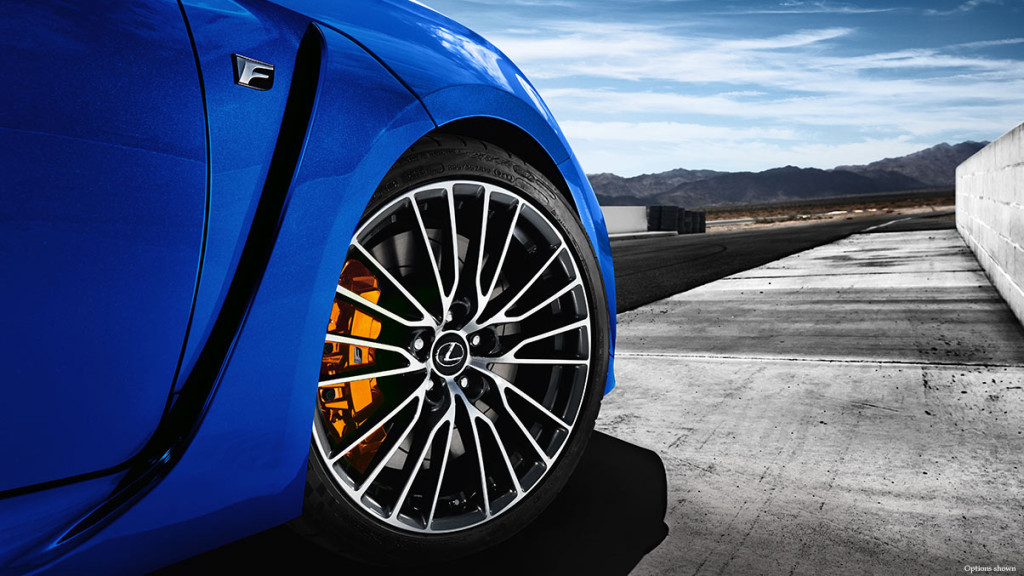

GSF/RCF Brembo brakes

GSF/RCF Front caliper brakes bolt-on using GSF/RCF rotors. Rear caliper with GSF/RCF rotors bolt on using a bracket adaptor.

Learn more

IS350 brakes

IS350 Front caliper brakes bolt-on for 1st gen IS using a bracket adaptor.

Learn more
